The Folding 100 Series by Henderson, available in both two and four leaf kits, is ideal for interior folding doors weighing up to 100 lbs per panel.
Features
- HF2/100A hardware kit for 2 doors folding in one direction. HF4/100Ahardware kit for 4 doors bi-folding (two right and two left)
- For top-hung, light weight, interior, partition doors

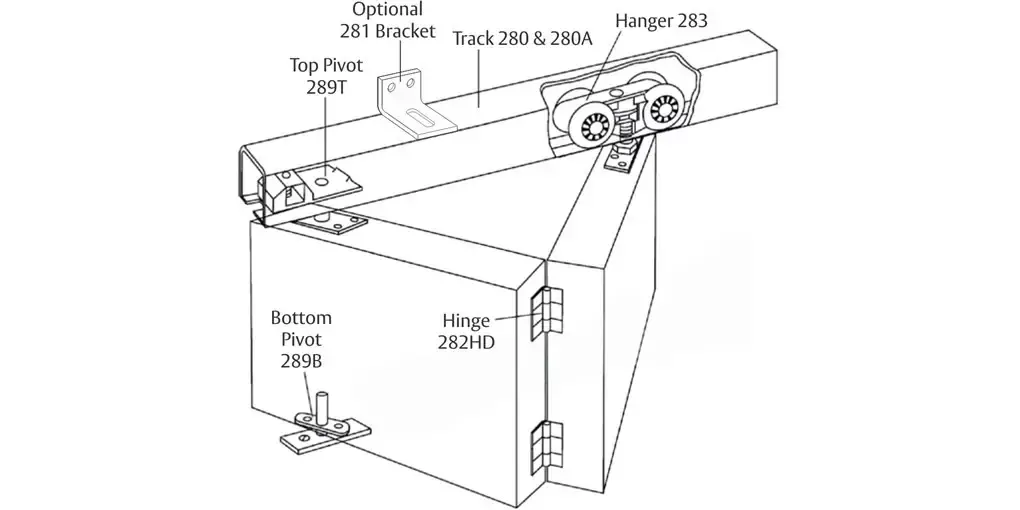

- 2 Doors Folding Kit Components: 1 – 289B Bottom Pivot, 1 – 106HF/94 Roller Guide, 1 – 94A Aluminum Guide Channel, 1 – Adjusting Wrench and Mounting Hardware, 1 – 289T Top Pivot, 1 – 280C Clear Anodized Track, 1 – 283 Hanger, 3 – 282HD26 Hinges
- 4 Doors Bi-folding Kit Components, 2 – 283 Hanger, 6 – 282HD26 Hinges, 2 – 289B Bottom Pivot, 1 – 94A Aluminum Guide Channel, 2 – 289T Top Pivot, 2 – 106HF/94 Roller Guide, 1 – 280A Mill Finished Aluminum Track, 1 – Adjusting Wrench and Mounting Hardware
Specifications
- Base Material
- Aluminum
- Door Type
- Wood
- Maximum Door Thickness
- 1 3/4″
- Minimum Door Thickness
- 1 3/4″
- Wheel Type
- Solid Nylon
Applications
- Public Buildings & Facilities
- Commercial & Industrial Buildings
- Government & Military Facilities
- Retail & Strip Malls
- Multifamily & Mixed-Use
Downloads
- Catalog
- Installation Instructions
